Electronic Warfare (EW) system

Cayman

Vehicle-mounted electronic warfare (EW) system designed to create dense 360° dome protection against FPV drones and hostile communication channels. Operates across a wide frequency range and provides extended autonomous operation.

Output power of <b>up to 100 W per module</b>.

Operation of <b>over 3 hours</b> on autonomous power.

Frequency ranges of 300–1000 MHz and 1000–1500 MHz — optimized for suppressing FPV drones

Technical specifications

Operating Frequency

300–1020 MHz

Weight

≤ 87 kg

Electricity consumption

1000 W

Dimensions (L × W × H)

750 × 1600 × 530 mm

Technical conditions

NSN: 5865-61-018-9271

Radiation power

up to 100 W per 1 module

Power source

7s2p battery (120A/h; 24-28V) in a protected aluminum case

Autonomy

≥ 2 hours on a single charge

Interface

remote control, LED charge indicator

EW SYSTEM "NEBOKRAY CAIMAN"

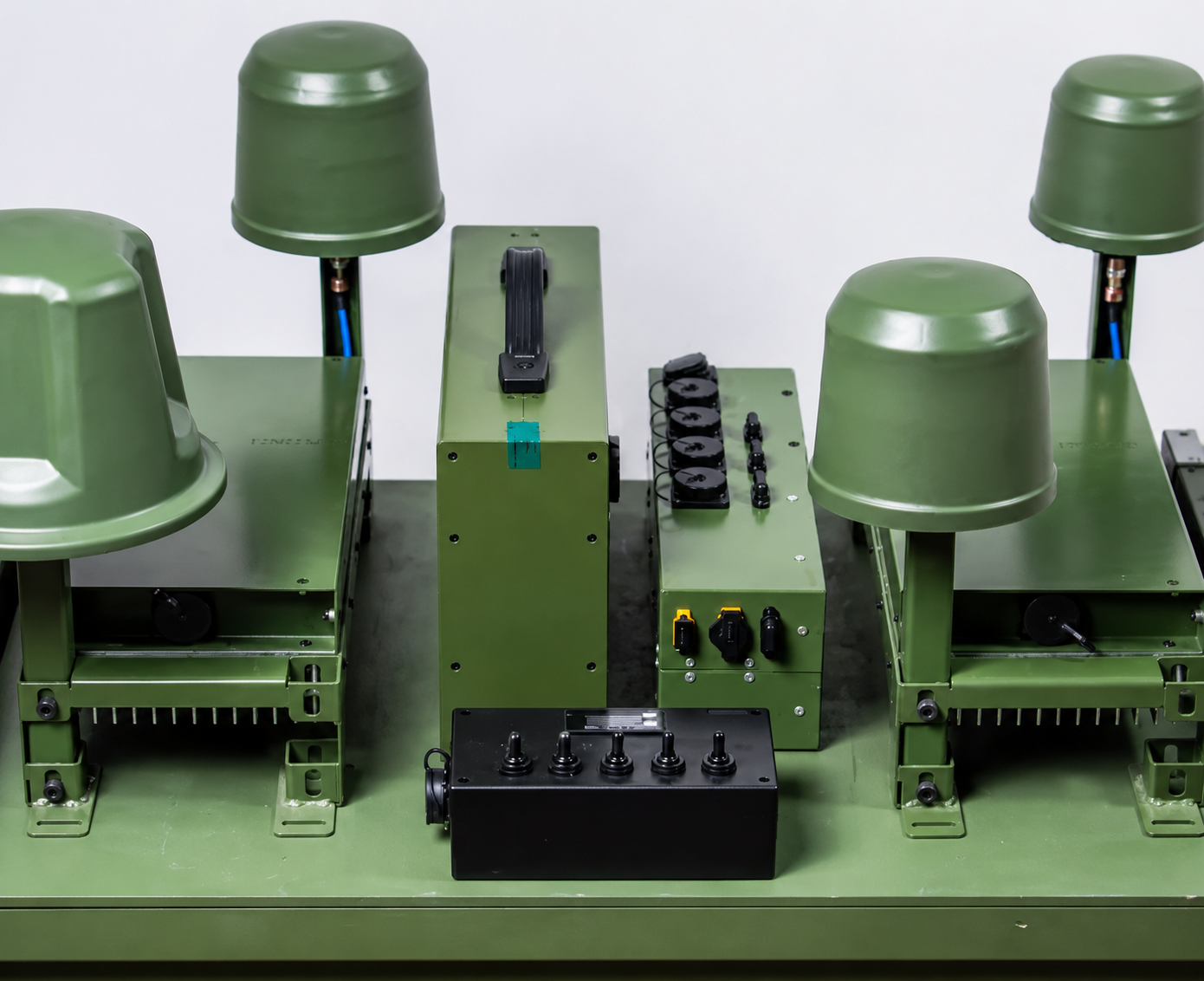

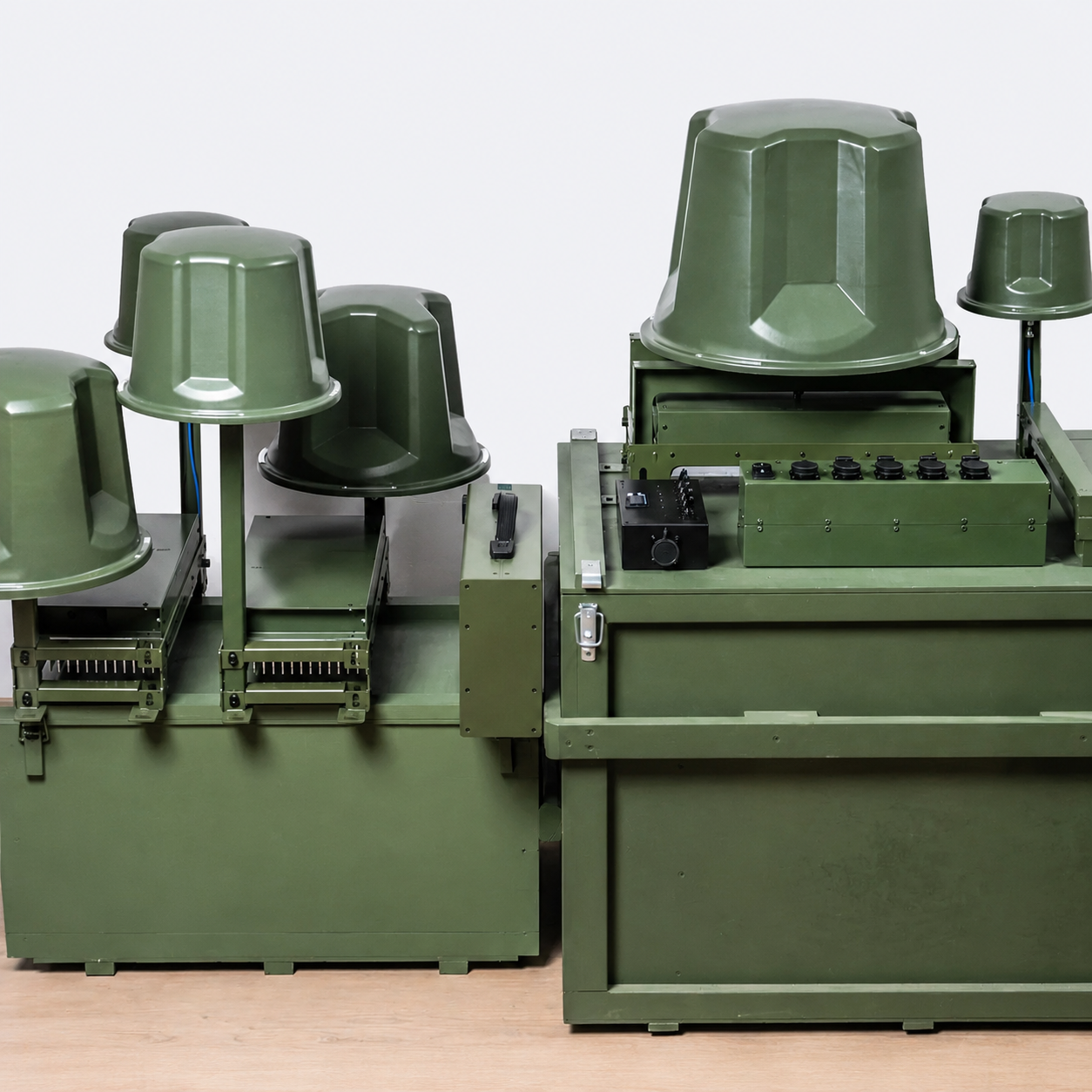

The "Nebokray Caiman" is a powerful multi-component electronic warfare system specifically designed for effective suppression of FPV drone and other UAV control signals.

MODEL FEATURES

Thanks to its wide frequency coverage, high output power, and rapid vehicle-mount capability, it is an indispensable tool for protecting both mobile and stationary positions. Output power reaches up to 100 W per module, ensuring stable interference generation within the UAV operating zone. Power consumption is up to 700 W, representing an optimal balance of power and energy efficiency. The system operates across a temperature range of −25 to +40 °C, delivering reliable performance in frost, heat, and high humidity. Total weight is up to 87 kg, with a multi-module design that allows flexible adaptation to various platforms. Frequency ranges of 300–1020 MHz cover the critical FPV drone control frequencies. Autonomous operating time exceeds 2 hours, sufficient for most combat tasks.

ADVANTAGES OF THE "NEBOKRAY CAIMAN" EW SYSTEM

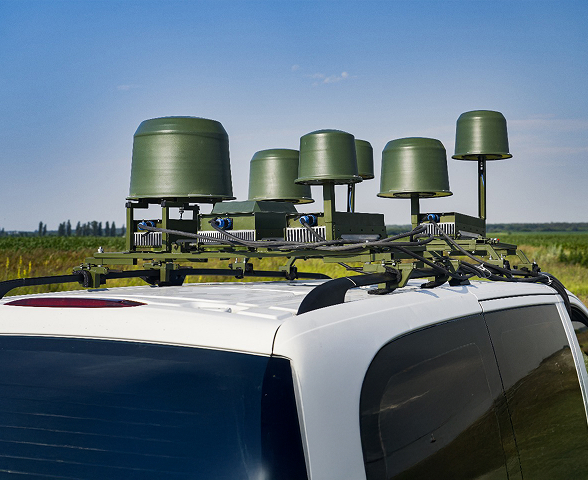

The system provides omnidirectional 360° protection, creating a dense electronic suppression dome around the object and ensuring continuous coverage from all sides. Its design allows rapid installation on the roof of any vehicle — from passenger cars to armored vehicles. A flexible antenna configuration, including quad-filar antennas, ensures maximum effectiveness against FPV drones. The modular design simplifies transportation, maintenance, and scaling. The "Nebokray Caiman" easily integrates with other EW assets, enabling the creation of comprehensive protection systems.
